New Yacht, Commercial & Military Construction in Aluminum

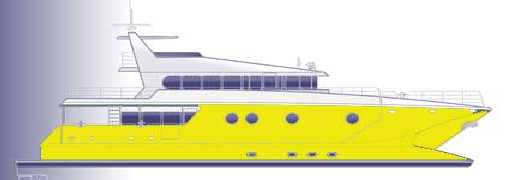

Ultimate 32m Mega Wave Piercing Cat

This vessel can be designed with three variations, separately fulfilling requirements for operation in the Mediterranean, and for both tropical and temperate regions of the USA. In addition Two or  Three and a half deck designed can be proposed  intended to fulfil the role of a high quality, private motor yacht, with the ability to operate commercially for top quality charters

Interior suggestions for a three and a half deck version below:-

Interior arrangements on the upper level will vary depending on the configuration. The fully enclosed version permits the bridge and captain’s quarters to move to this level, leaving the next deck down clear for an enormous owner’s suite, although the upper deck could also make for a skylounge with 360 degree panoramic views. Open versions of the boat could be configured as a flybridge, with sun beds, wet bars and a Jacuzzi if preferred.

The mid or bridge deck level designed to house the bridge island in its forward sections, and as the main control station for the vessel incorporates twin helm seats, navigation and communications systems and major ship control functions. Guest seating can also located in the bridge which converts to an ’on watch’ berth. The captain’s double cabin with ensuite bathroom facilities to be located immediately adjacent to the bridge - a useful safety feature.

A Portuguese Bridge would permit foredeck access from the bridge as well as allowing crew to access the service sections of the vessel without the need to enter the accommodation areas of the vessel.

The owner’s suite could occupy the entire aft sections of the bridge deck level and be designed as a multi-functional area, affording the utmost privacy for the owner, but also offering a relaxed private meeting and al fresco dining area for guests if required.

The main deck level to be designed to accommodate four large guest staterooms all with king sized beds and ensuite bathrooms in the forward sections of the vessel. Further aft, access to the upper decks can be gained from a centrally located stairwell adjacent to the large galley.

Seating for ten suggested  in the formal dining area, which is divided from the lounge by a central island. A large al fresco dining area to belocated not far from here on the aft deck.

Twin curving stairways provide access from the aft deck onto the lower elevator deck, which houses the 5.5m tender and two, three man jet skis. Hydraulically actuated, the elevator deck lowers from wingdeck height 1.7m above the waterline to 1m below, allowing easy launch and retrieve of the tenders and forming an unparalleled means of access to the water for swimmers and divers

Accommodation within the demi-hulls is provided for an engineer, a workshop, and a twin guest bunkroom in the opposite demi-hull. Both cabins have adjacent toilet and shower facilities.

Vessel Type:

Wave piercing catamaran

Construction:

Alloy

Length Overall:

31.75. metres

Length WL:

26.2 metres

Beam:

10.2 metres

Draught:

2.5 metres

Displacement:

100,000 kg / 220,462 pounds - lightship

Main Engines:

2 x 1800 hp MTU diesel 16V 2000

Speed:

26 knots - cruise
30 knots - sprint

Fuel:

Diesel - 11,400 litres / 3008

Range:

as required, vessel can be trans Atlantic capable

Design Specifications intended as guide only and is subject to custom design features.

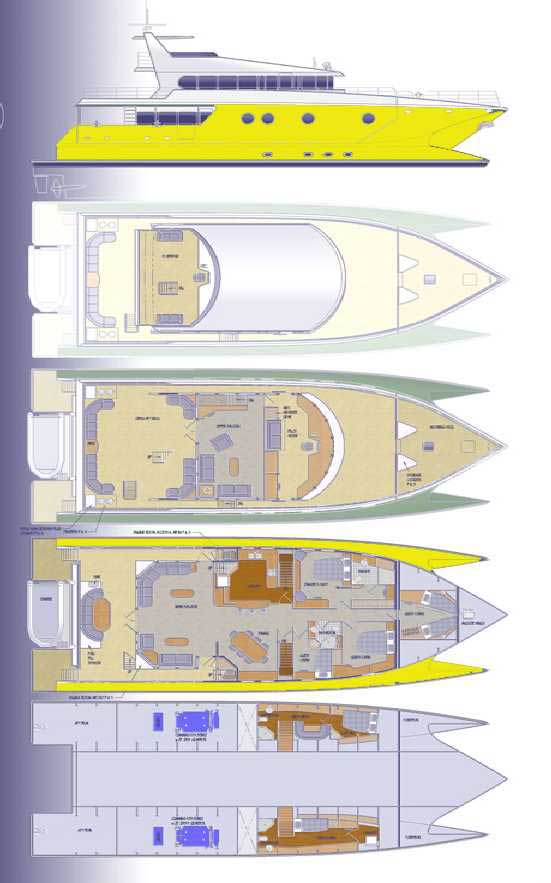

   32m GA.jpg (44888 bytes)
